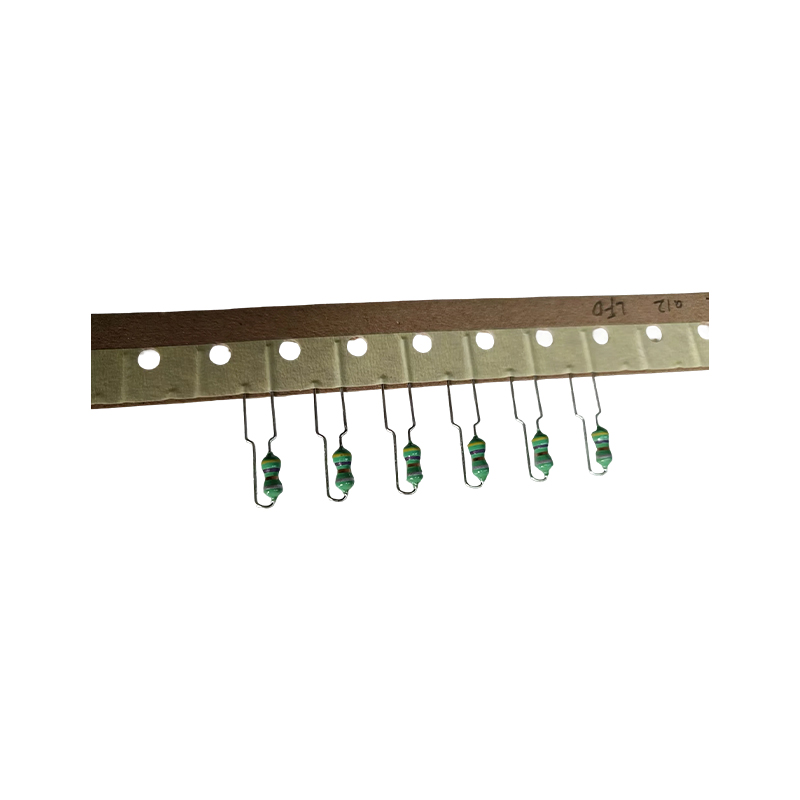

Color ring inductor 0410 vertical braid

0410-4R7K-LFD
Features: 1. Low cost 2. Different Q value characteristics, high reliability 3. High self-resonant frequency, low DC resistance.
Application: Choke coil, RF coil, scanning signal correction coil.

Consultation

Features Technical Indicators Overall Dimension

AL0410 Series
Part Numbet	Inductance(uH)	Q(min)	SRF(MHz)(min)	Rdc(9)(max)	Idc(mA)(max)	Test Freq(MHz)
AL0410-R22M	0.22	45	300	0.10	1400	25.2
AL0410-R27M	0.27	45	270	0.11	1320	25.2
AL0410-R33M	0.33	45	250	0.12	1280	25.2
AL0410-R39M	0.39	45	230	0.13	1200	25.2
AL0410-R47M	0.47	45	220	0.14	1150	25.2
AL0410-R56M	0.56	45	200	0.15	1100	25.2
AL0410-R68M	0.68	45	190	0.16	1030	25.2
AL0410-R82M	0.82	45	172	0.17	980	25.2
AL0410-1ROM	1.0	45	157	0.19	920	25.2
AL0410-1R2M	1.2	50	144	0.21	880	7.96
AL0410-1R5M	1.5	50	131	0.23	830	7.96
AL0410-1R8M	1.8	55	121	0.25	790	7.96
AL0410-2R2M	2.2	55	110	0.28	750	7.96
AL0410-2R7M	2.7	60	100	0.30	720	7.96
AL0410-3R3K	3.3	65	94	.0.34	670	7.96
AL0410-3R9K	3.9	65	55	0.37	640	7.96
AL0410-4R7K	4.7	70	56	0.39	620	7.96
AL0410-5R6K	5.6	70	48	0.43	590	7.96
AL0410-6R8K	6.8	75	37	0.48	550	7.96
AL0410-8R2K	8.2	80	25	0.52	530	7.96
AL0410-100K	10	65	21	0.58	500	7.96
AL0410-120K	12	50	19	0.63	480	2.52
AL0410-150K	15	50	17	0.72	460	2.52
AL0410-180K	18	50	13	0.77	430	2.52
AL0410-220K	22	50	9.6	0.84	410	2.52
AL0410-270K	27	55	7.2	0.94	390	2.52
AL0410-330K	33	55	6.6	1.03	370	2.52
AL0410-390K	39	50	6.6	1.12	350	2.52
AL0410-470K	47	45	6.3	1.22	340	2.52
AL0410-560K	56	40	6.2	1.34	320	2.52
AL0410-680K	68	40	5.7	1.47	305	2.52
AL0410-820K	82	35	5.3	1.62	290	2.52
AL0410-101K	100	30	4.8	1.80	275	2.52
AL0410-121K	120	55	3.8	3.70	185	0.796
AL0410-151K	150	45	3.5	4.20	175	0.796
AL0410-181K	180	50	3.3	4.60	165	0.796
AL0410-221K	220	55	3.0	5.10	155	0.796
AL0410-271K	270	65	2.8	5.80	145	0.796
AL0410-331K	330	65	2.6	6.40	137	0.796
AL0410-391K	390	65	2.4	7.00	133	0.796
AL0410-471K	470	60	2.25	7.70	126	0.796
AL0410-561K	560	60	2.10	8.50	120	0.796
AL0410-681K	680	55	1.95	9.40	113	0.796
AL0410-821K	820	55	1.85	10.5	105	0.796
AL0410-102K	1000	50	1.40	14.0	100	0.796
AL0410-222K	2200	45	1.0	30.0	50	0.796
