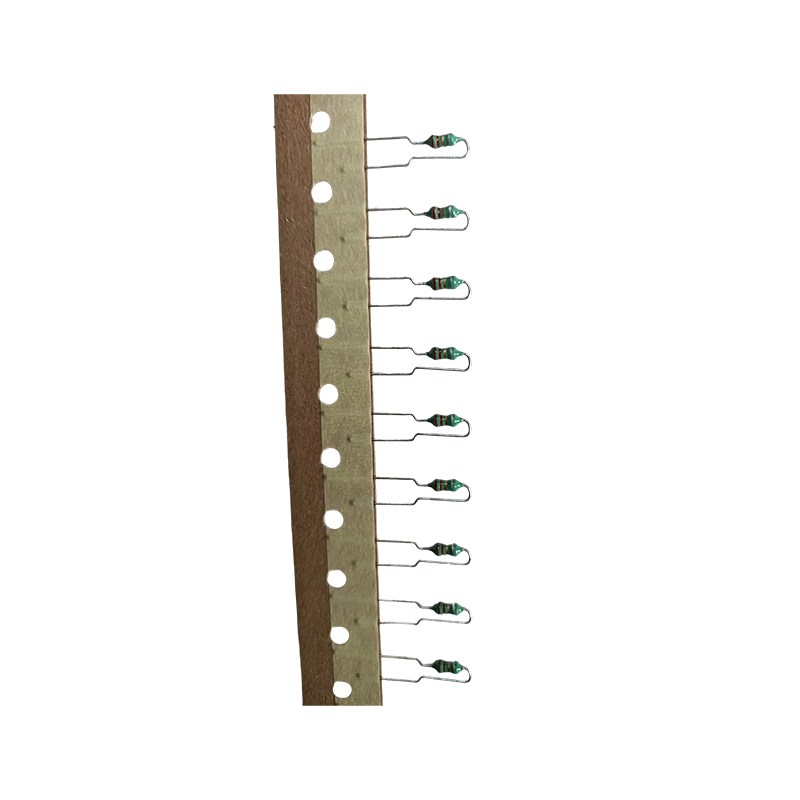

Color Ring Inductor 0307 Vertical Tape

0307-2R2K-LFD
Features: 1. Low cost 2. Different Q value characteristics, high reliability 3. High self-resonant frequency, low DC resistance.
Application: Choke coil, RF coil, scanning signal correction coil.

Consultation

Features Technical Indicators Overall Dimension

AL0307 Series
Part Numbet	Inductance(uH)	Q(min)	SRF(MHz)(min)	Rdc(9)(max)	Idc(mA)(max)	Test Freq(MHz)
AL0307-R22M	0.22	35	150	0.40	400	25.2
AL0307-R27M	0.27	35	150	0.43	380	25.2
AL0307-R33M	0.33	35	150	0.48	370	25.2
AL0307-R39M	0.39	35	150	0.51	350	25.2
AL0307-R47M	0.47	35	150	0.56	330	25.2
AL0307-R56M	0.56	40	150	0.61	320	25.2
AL0307-R68M	0.68	40	150	0.67	310	25.2
AL0307-R82M	0.82	40	150	0.74	290	25.2
AL0307-1ROM	1.0	40	150	0.80	270	25.2
AL0307-1R2M	1.2	50	144	0.90	260	7.96
AL0307-1R5M	1.5	50	131	1.00	250	7.96
AL0307-1R8M	1.8	50	121	1.10	240	7.96
AL0307-2R2M	2.2	50	110	1.20	230	7.96
AL0307-2R7M	2.7	50	100	1.30	220	7.96
AL0307-3R3K	3.3	50	94	1.40	210	7.96
AL0307-3R9K	3.9	50	65	1.60	200	7.96
AL0307-4R7K	4.7	50	56	1.70	190	7.96
AL0307-5R6K	5.6	50	48	1.90	180	7.96
AL0307-6R8K	6.8	50	37	2.00	175	7.96
AL0307-8R2K	8.2	50	25	2.20	165	7.96
AL0307-100K	10	50	21	2.50	160	7.96
AL0307-120K	12	50	19	2.50	150	2.52
AL0307-150K	15	50	17	2.80	145	2.52
AL0307-180K	18	50	13	3.10	140	2.52
AL0307-220K	22	50	9.6	3.40	130	2.52
AL0307-270K	27	50	7.2	3.80	125	2.52
AL0307-330K	33	50	6.3	4.10	120	2.52
AL0307-390K	39	50	6.3	4.50	115	2.52
AL0307-470K	47	50	6.3	4.90	110	2.52
AL0307-560K	56	50	6.2	5.30	105	2.52
AL0307-680K	68	50	5.7	5.80	100	2.52
AL0307-820K	82	50	5.3	6.30	95	2.52
AL0307-101K	100	50	4.8	7.00	90	2.52
AL0307-121K	120	50	3.8	13.0	90	0.796
AL0307-151K	150	50	3.5	15.0	85	0.796
AL0307-181K	180	50	3.3	16.0	80	0.796
AL0307-221K	220	50	3.0	17.0	75	0.796
AL0307-271K	270	50	2.8	19.0	65	0.796
AL0307-331K	330	50	2.6	20.0	60	0.796
AL0307-391K	390	50	2.4	22.0	55	0.796
AL0307-471K	470	50	2.25	24.0	55	0.796
AL0307-561K	560	50	2.10	26.0	50	0.796
AL0307-681K	680	50	1.95	28.0	45	0.796
AL0307-821K	820	50	1.85	30.0	40	0.796
AL0307-102K	1000	50	1.40	33.0	40	0.796
